| General Info | |
|---|---|
| Brand Name | Powerfist |
| SKU | 9490533 |
| Package (L x W x H) | 24.3in x 3.6in x 5.4in |
| Weight | 21 lb |
| Details | |
|---|---|

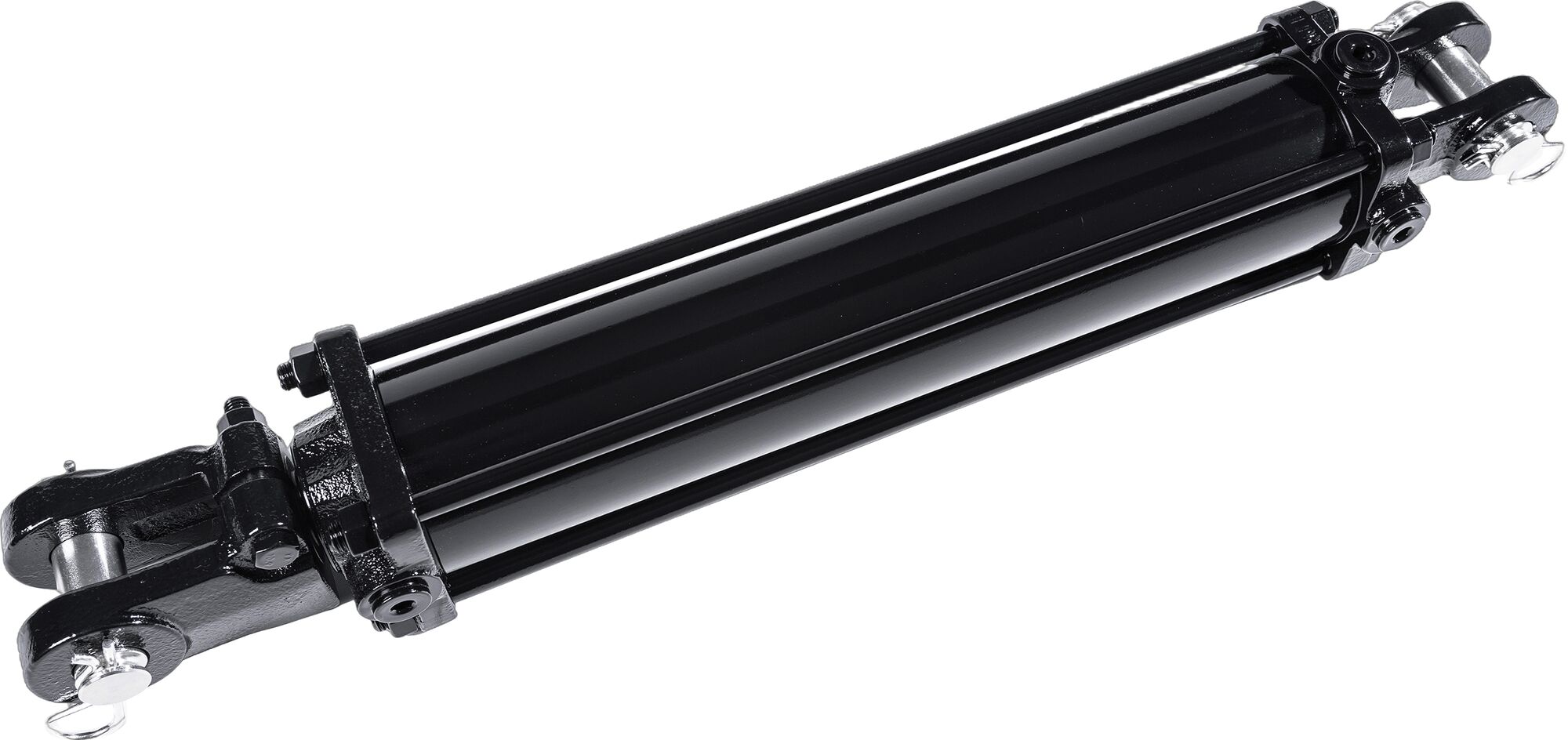

| Item Name | 2 in. Bore x 12 in. Stroke Tie Rod Cylinder |
| Retracted Length Pin to Pin (in.) | 22-1/4 |
| Force at Max. Pressure (lb) | 7,850 |
| Dimensions (in.) | 3 x 3 x 23 |
| Connection Size | 3/8 in. and 8 |
| Connection Type | NPT and ORB |
| Bore Size (in.) | 2 |
| Pressure Rating (PSI) | 2,500 |
| Rod Diameter (in.) | 1-1/8 |
| Rod Thread Size | 1-1/8-12UNF |
| Pinhole Diameter (in.) | 1 |
| Mounting Type | Clevis end with 1 in. pin-hole diameter |
| Temperature Range | -30 to 90°C |
| Material | Steel |
| Colour/Finish | Black/gloss |
| Includes | Includes Parker and Hallite seals. |
| Packaging (qty) | 1 |
