| General Info | |
|---|---|
| Brand Name | Powerfist |
| SKU | 8174864 |
| Package (L x W x H) | 22.2in x 3.2in x 3.5in |
| Weight | 19.4 lb |
| Details | |
|---|---|

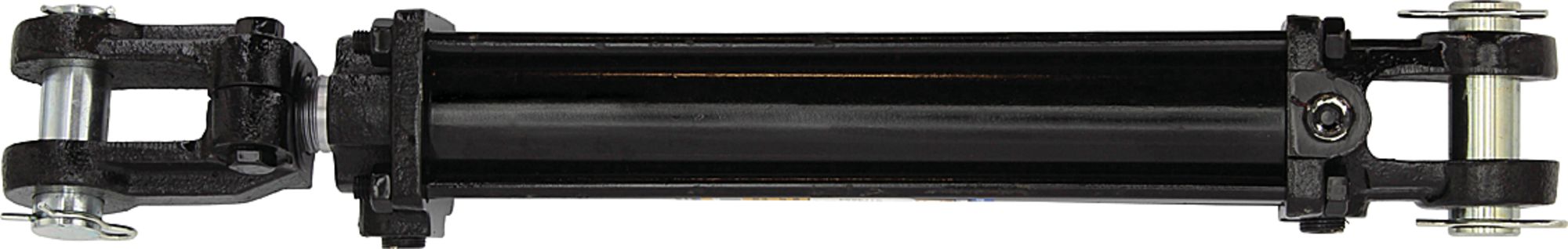

| Item Name | 2 in. Bore x 10 in. Stroke Tie Rod Implement Cylinder |
| Retracted Length Pin to Pin (in.) | 20-1/4 |
| Dimensions (in.) | 3 x 3 x 22.2 |
| Connection Size | 3/8 in. |
| Connection Type | NPTF |
| Bore Size (in.) | 2 |
| Pressure Rating (PSI) | 2,500 |
| Force at Max. Pressure (lb) | 7,850 |
| Rod Diameter (in.) | 1-1/8 |
| Rod Thread Size | 1-1/8-12UNF-2A |
| Pinhole Diameter (in.) | 1 |
| Mounting Type | Clevis ends with 1 in. pinhole dia. |
| Temperature Range | -30 to 100 °C (-22 to 212°F) |
| Material | Steel |
| Colour/Finish | Black/painted |
| Packaging (qty) | 1 |
