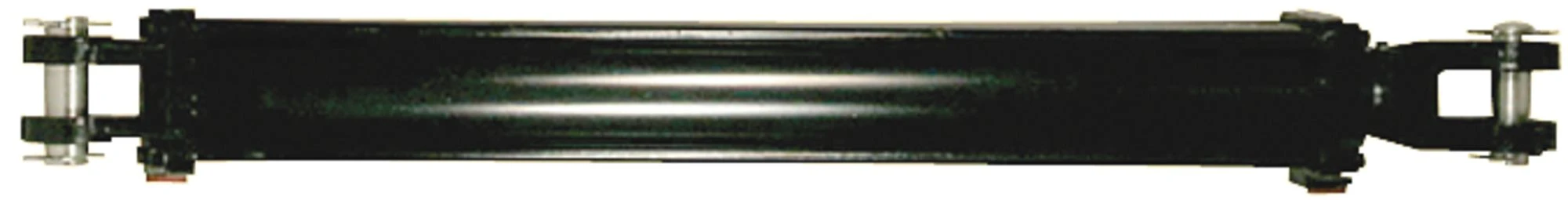

3 in. Bore x 24 in. Stroke Tie Rod Implement Cylinder
+5
3 in. Bore x 24 in. Stroke Tie Rod Implement Cylinder
Save $97.96 (49%)
Pick up at Select Store
Ship to
Available
| General Info | |
|---|---|
| Brand Name | Powerfist |
| SKU | 1210010 |
| Package (L x W x H) | 36.7in x 4.2in x 3.7in |
| Weight | 42.4 lb |
| Details | |
|---|---|
| Item Name | 3 in. Bore x 24 in. Stroke Tie Rod Implement Cylinder |
| Retracted Length Pin to Pin (in.) | 34-1/4 |
| Dimensions (in.) | 4.2 x 4.2 x 36.2 |
| Connection Size | 1/2 in. |
| Connection Type | NPTF |
| Bore Size (in.) | 3 |
| Pressure Rating (PSI) | 2,500 |
| Force at Max. Pressure (lb) | 17,662 |
| Rod Diameter (in.) | 1-1/4 |
| Rod Thread Size | 1-1/8-12UNF-2A |
| Pinhole Diameter (in.) | 1 |
| Mounting Type | Clevis ends with 1 in. pinhole dia. |
| Temperature Range | -30 to 100 °C (-22 to 212°F) |
| Material | Steel |
| Colour/Finish | Black/painted |
| Packaging (qty) | 1 |
