| General Info | |
|---|---|
| Connection Size | 6 |
| SKU | 9263278 |
| Package (L x W x H) | 26.5in x 5.7in x 5.7in |
| Weight | 65 lb |
| Details | |
|---|---|

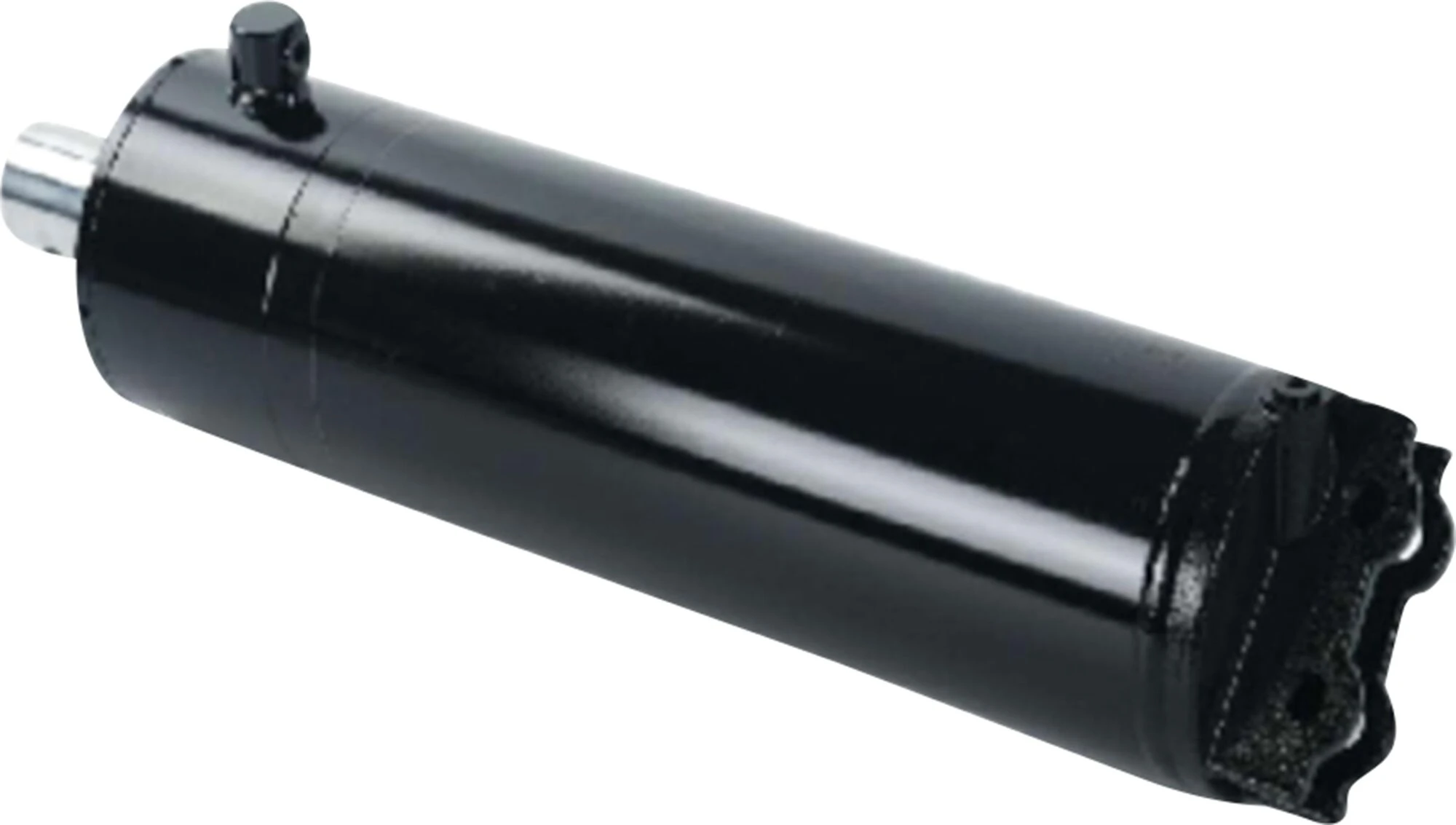

| Item Name | 5 in. Bore x 16 in. Stroke Hoist Cylinder |
| Retracted Length Pin to Pin (in.) | 23-9/16 |
| Connection Type | ORBF |
| Bore Size (in.) | 5 |
| Pressure Rating (PSI) | 3,000 |
| Force at Max. Pressure (lb) | 58,875 |
| Rod Diameter (in.) | 2 |
| Pinhole Diameter (in.) | 0.63 |
| Base Pin Eye Width (in.) | 1.13 |
| Rod Pin Eye Width (in.) | 0.69 |
| Temperature Range | -30 to 100 °C (-22 to 212°F) |
| Material | Steel |
| Colour/Finish | Black |
| Packaging (qty) | 1 |
