| General Info | |
|---|---|
| Brand Name | Hobart |
| SKU | 9202227 |
| Package (L x W x H) | 37.1in x 20.1in x 26.5in |
| Weight | 373 lb |
| Details | |
|---|---|

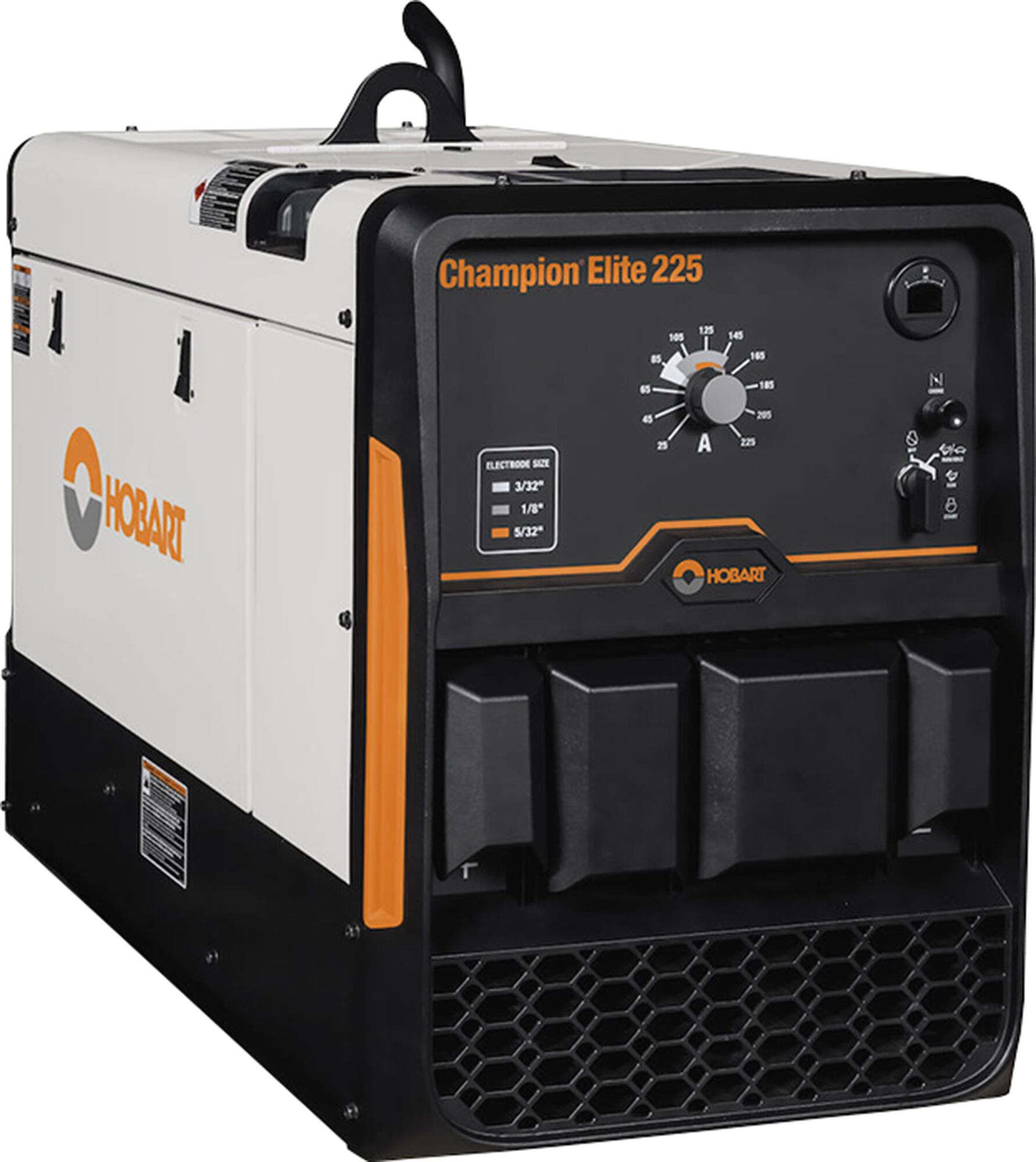

| Item Name | Hobart Champion Elite 225 DC Stick Welder/10,000W AC Generator |

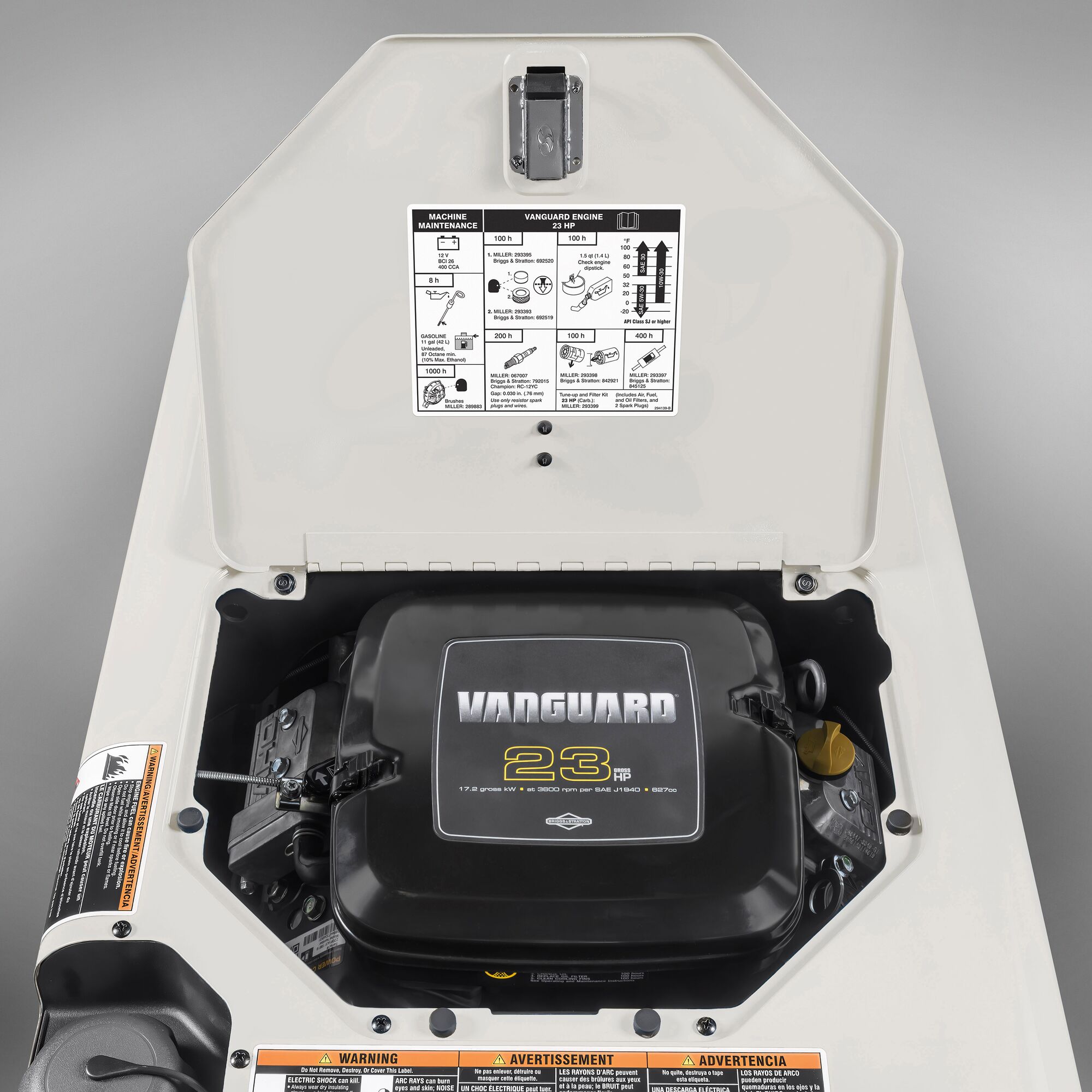

| Engine Type | Vanguard |
| Engine Displacement (cc) | 627 |
| Fuel Type | Gasoline |
| Fuel Tank Capacity (litres) | 41.64 |
| Start Type | Electronic ignition |
| Low Oil Shut Down | Yes |
| Starting Watts (W) | 10,000 |
| Running Watts (W) | 9,500 |
| Voltage Rating (V AC) | 115/230 |
| Amperage Rating (A) | 25-225 |
| Receptacles | (4) 120V (20A) GFCI protected outlets, (1) 240V (NEMA 6-50R) 50A receptacle and (1) 120/240V (NEMA 14-50R) 50A receptacle with push-button reset circuit breaker |
| Welder Type | Stick |
| Skill Level | Moderate |
| Duty Cycle | 100% @ 225A |
| Metal Type | Carbon steel, Stainless steel, cast iron |
| Output Current (A) | 225 |
| Current Range (A) | 25 to 225 |
| AC/DC Output | DC welder/AC generator |
| Mild Steel Weld Thickness Range | 1/2 in. |
| Electrode Type | 6010, 6011, 6013, 7014, 7028, 7024, Ni-Cl, 308L |
| Electrode Size (in.) | 1/8 |
| Dimensions (in.) | 37L x 26-1/2W x 20H |
| Packaging (qty) | 1 |
