| General Info | |
|---|---|
| Brand Name | Hyundai |
| SKU | 9213109 |
| Package (L x W x H) | 39.4INCHES x 33.5INCHES x 73INCHES |
| Weight | 660 POUNDS |
| Details | |
|---|---|

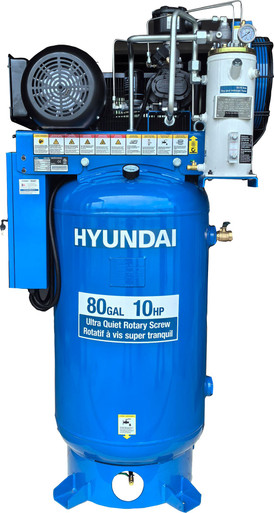

| Item Name | 80 Gallon 10 HP Rotary Screw Electric Air Compressor, Special Order Only |
| Type | Ultra quiet |
| Air Tank Size (gal.) | 80 |
| Tank Type | Vertical |
| Motor Type | Universal |
| Horse Power (HP) | 10 |
| Voltage Rating (V AC) | 230 |
| Amperage Rating (A) | 40.2 |
| Frequency Rating (Hz) | 60 |
| Phase | Single |
| Air Delivery @ 40 PSI | 27.8 CFM |
| Air Delivery @ 90 PSI | 25 CFM |
| Air Delivery @ 100 PSI | 22.4 CFM |
| Air Delivery @ 175 PSI | 22.3 CFM |
| Max. Pressure Rating (PSI) | 175 |
| Factory On/Off Setting (PSI) | 145 |
| Duty Cycle (%) | 100 |
| Average Pump Life (h) | 100,000 |
| Drive Type | Belt |
| Number of Stages | 1 |
| Lubrication Type | Forced oil |
| Decibel Rating | 66 |
| Outlet Connection Size (in.) | 1 |
| Outlet Connection Type | Ball valve |
| Drain Type | Ball valve |
| Overall Length (in.) | 39-3/8 |
| Overall Width (in.) | 33-1/2 |
| Overall Height (in.) | 73 |
