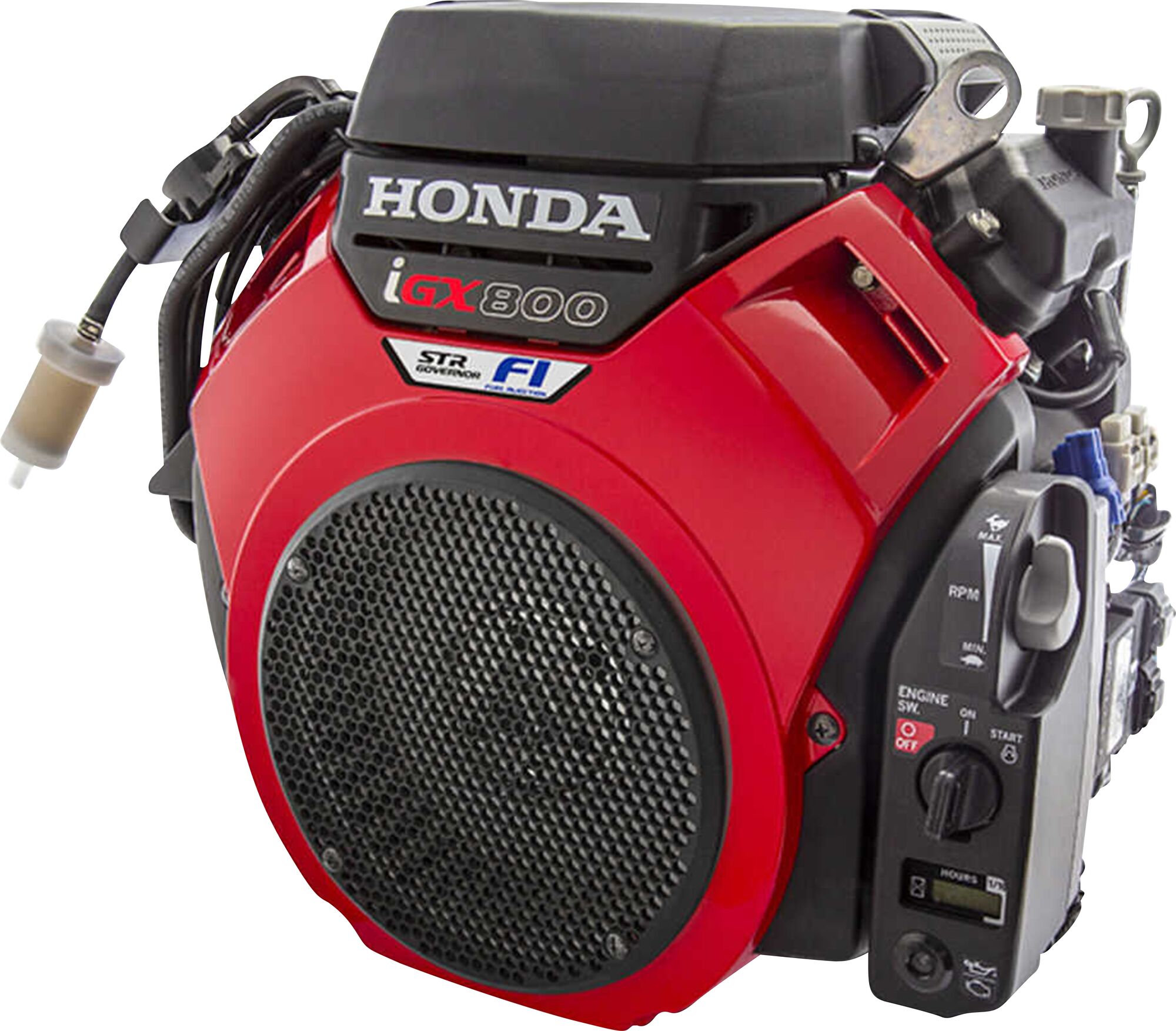

Introducing the new Honda iGX engine series...pairing fuel-efficiency with high-output operation with the new Honda iGX engine series

• Efficient Fuel Consumption: Honda V-Twin engines with EFI boast excellent fuel efficiency due, in part, to an electronic control system (ECS, see discussion below) that continually monitors and adjusts the engine's air/fuel ratio according to variable operating conditions and engine load requirements, maintaining optimal combustion conditions.
• Delivering complete drive-by-wire remote control capability for engine operation and benefiting both contractors and the environment, Honda iGX technology results in excellent fuel efficiency, low emissions, and low noise through engine speed that adapts to fluctuating power demands. The result is more consistent output and less stress on industrial equipment and tools.
• Providing enhanced performance and quality, the engines are equipped with fuel injection technology and an integrated electronic self-tuning regulator (STR) governor that delivers drive-by-wire remote control capability to manage key aspects of engine operation.
  • Central to the iGX concept on the new V-Twin models is an integrated ECU with a self-tuning regulator (STR) governor system that allows the engine to communicate with the machine it is powering to achieve optimal performance by monitoring key parameters, controlling engine speed and diagnostics. The ECU enables drive-by-wire remote control operation of the engine, and speed of the models can be programmed and varied based on the load and speed requirements of equipment applications.

• The new Honda V-Twin models feature high power output in a compact design comparable to the compact base frame footprints of other high-output Honda engines, ranging from the GX630 to the iGX800. The design compatibility minimizes changing time, making it easy for the user to install the new V-Twin models when older engines reach the end of their service lives. The design also allows manufacturers maximum flexibility with current tooling and frames.
  • These feature a control panel with an LED indicator that informs the user about potential problems with diagnostic trouble codes. This indicator is designed either to stop the engine or alert the operator if any corrective actions need to be taken. These alerts protect and help extend the life of the engine.As a result of Honda's adoption of the Society of Automotive Engineers (SAE) standard J1939 vehicle bus, the recommended practice used for communication and diagnostics among vehicle components, the new Honda V-Twin models offer a standardized method for communication across ECUs for seamless integration between engine and application.
  • The new V-Twin models feature a control panel with an LED indicator that informs the user about potential problems with diagnostic trouble codes. This indicator is designed either to stop the engine or alert the operator if any corrective actions need to be taken. These alerts protect and help extend the life of the engine.
