| General Info | |
|---|---|
| Brand Name | Honda |
| SKU | 9492216 |
| Package (L x W x H) | 11in x 10in x 11.5in |
| Weight | 8.5 lb |
| Details | |
|---|---|

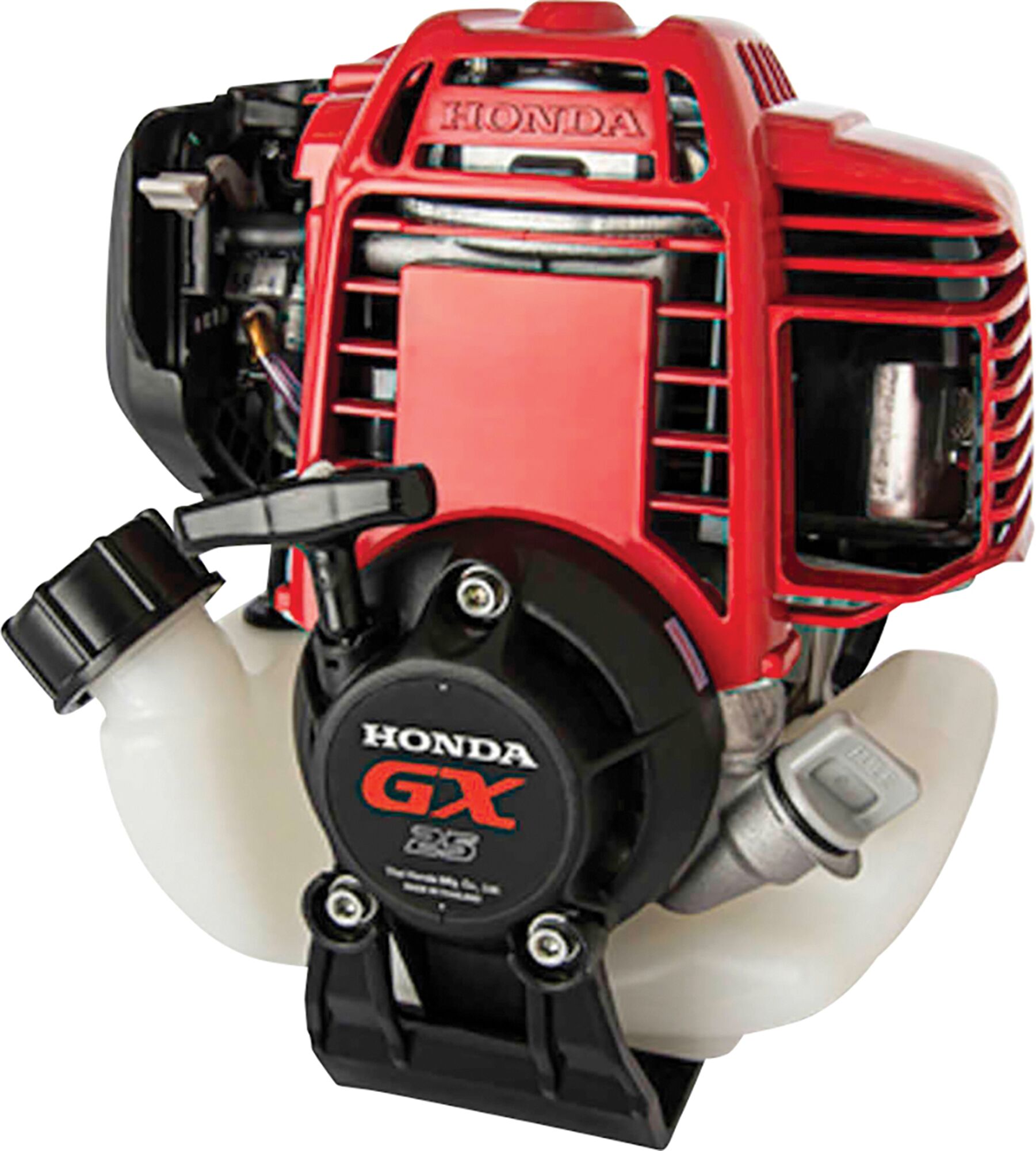

| Item Name | 25cc GX25 OHC Horizontal Gas Engine |
| Engine Type | Single cylinder, 4-stroke, OHC, air-cooled |
| Engine Displacement (cc) | 25 |
| Theoretical Horsepower (HP) | 1 |
| Torque Rating (ft-lb) | 0.74 |
| Engine Speed (RPM) | 7,000 |
| Number of Cylinders | 1 |
| Bore Diameter (in.) | 1-3/8 |
| Stroke Length (in.) | 1 |
| Compression Ratio | 8.0:1 |
| Shaft Diameter (in.) | 5/8 |
| Shaft Length (in.) | 1 |
| Shaft Bolt Thread Size | 5/16-24 UNC |
| Shaft Bolt Thread Depth (mm) | 12 |
| Shaft Key Diameter (in.) | 3/16 |
| Shaft Rotation | CCW (viewed from PTO) |
| Start Type | Recoil |
| Fuel Capacity (litres) | 0.58 |
| Fuel Type | Unleaded |
| Carburetor | Diaphragm-type |
| Throttle Control | Manual |
| Choke Control | Manual |
| Oil Capacity (qt.) | 3.08 |
| Cooling System | Air |
| Bearing Type | Ball |
| Dimensions (in.) | 7-1/2 x 8-3/4 x 9 |
| Packaging (qty) | 1 |
