| General Info | |
|---|---|
| Type | Aluminum pneumatic single acting cylinder |
| SKU | 8246928 |
| Package (L x W x H) | 9in x 2in x 1.8in |
| Weight | 0.7 lb |
| Details | |
|---|---|

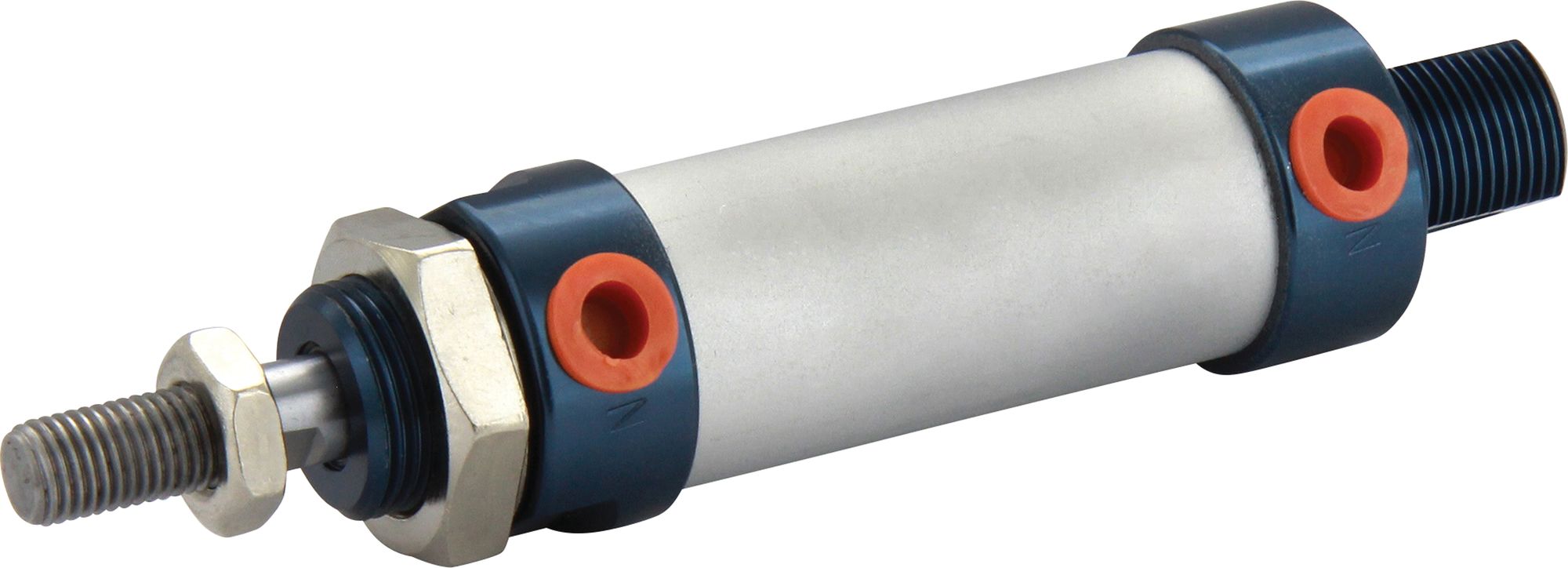

| Item Name | 25 mm Bore x 25 mm Stroke Aluminum Pneumatic Single-Acting Spring Return Cylinder |
| Retracted Length (mm) | 185 |
| Pressure Rating (PSI) | 130 |
| Bore (mm) | 25 |
| Rod Diameter (mm) | 10 |
| Rod Thread Size | M10 x 1.25 |
| Nose Mount Thread | M22 x 1.5 |
| Base Mount Thread | M22 x 1.5 |
| Connection Size | 1/8 in. |
| Connection Type | NPTF |
| Piston Rod Material | Chromed-steel shaft |
| Tube Material | Aluminum |
| Temperature Rating | -20 to 70°C (4 to 158°F) |
| Packaging (qty) | 1 |
