| General Info | |
|---|---|
| Brand Name | Hobart Welding Products |
| SKU | 8998296 |
| Package (L x W x H) | 30.2in x 15.5in x 16.5in |
| Weight | 61.3 lb |
| Details | |
|---|---|

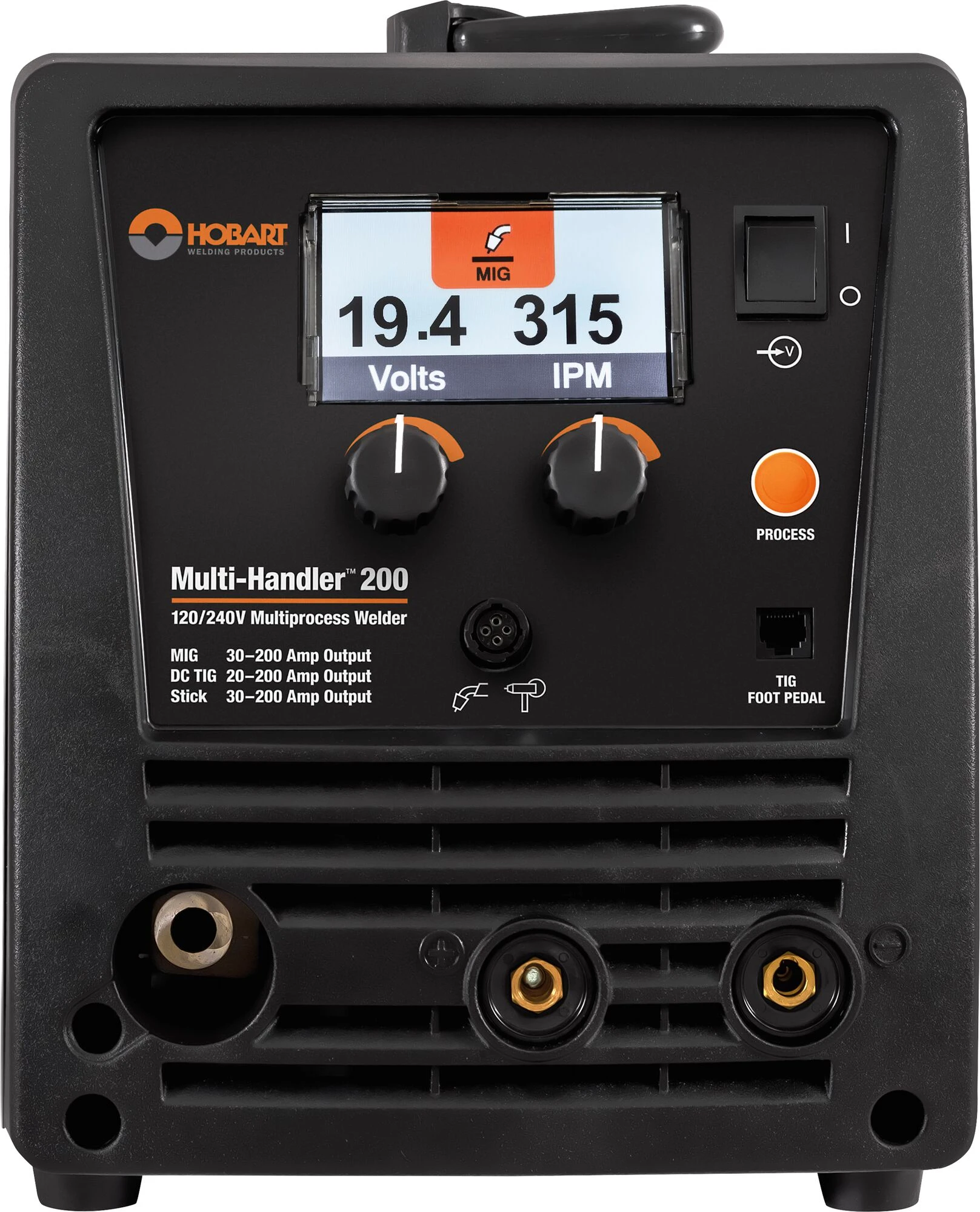

| Item Name | Multi-Handler 200 Multi-Process Welder |
| Skill Level | All |
| Input Voltage (V) | 120/240 |
| Duty Cycle | 30% @ 110/165A (MIG); 30% @ 105/165A; (DC TIG); 30% @ 90/140A (stick) |
| Metal Type | Steel/aluminum/stainless |
| Output Current (A) | Rated output at 30% duty cycle MIG: 120V 110A @ 19.5V 240V 165A @22.2V DC TIG: 120V 105A @14.2V 240V 165A@16.6V Stick: 120V 90A @ 23.6 V 240V 140A @ 25.6V |
| Max. Amperage Draw (A) | MIG: 120V 23.0 240V 19.0. DCTIG: 120V 16.7 240V 14.7. Stick 120V 22.0 240V 17.9 |
| Current Range (A) | MIG: 120V 30-120A, 240V 30-200A. DC TIG: 120V 20-140A, 240V 20-200A. Stick: 120V 20-100A 240V 30-200A |
| Mild Steel Weld Thickness Range | MIG/Flux cored 24-gauge 3/8 in.; DC TIG 22-gauge 3/16 in.; Stick 16-gauge 3/8 in. |
| AC/DC Output | DC |
| Generator Compatible | Yes |
| Welding Gas Required | Optional |
| Electrode Type | All but 6010 |
| Electrode Size (in.) | Max. 5/32 |
| Includes | MIG gun with 10 ft cable, Electrode holder with 10 ft cable, TIG torch with 12.5 ft cable, Work clamp with 10 ft cable, Power cord with 5-15P(120v , 15A) and 6-50P(240 V, 50A) MVP plugs, Extra .030 and .035 in. contact tips. Spool of .030 sold wire. Insul |
| Dimensions (in.) | 13.4H x 10.6W x 20.8D |
| Packaging (qty) | 1 |
