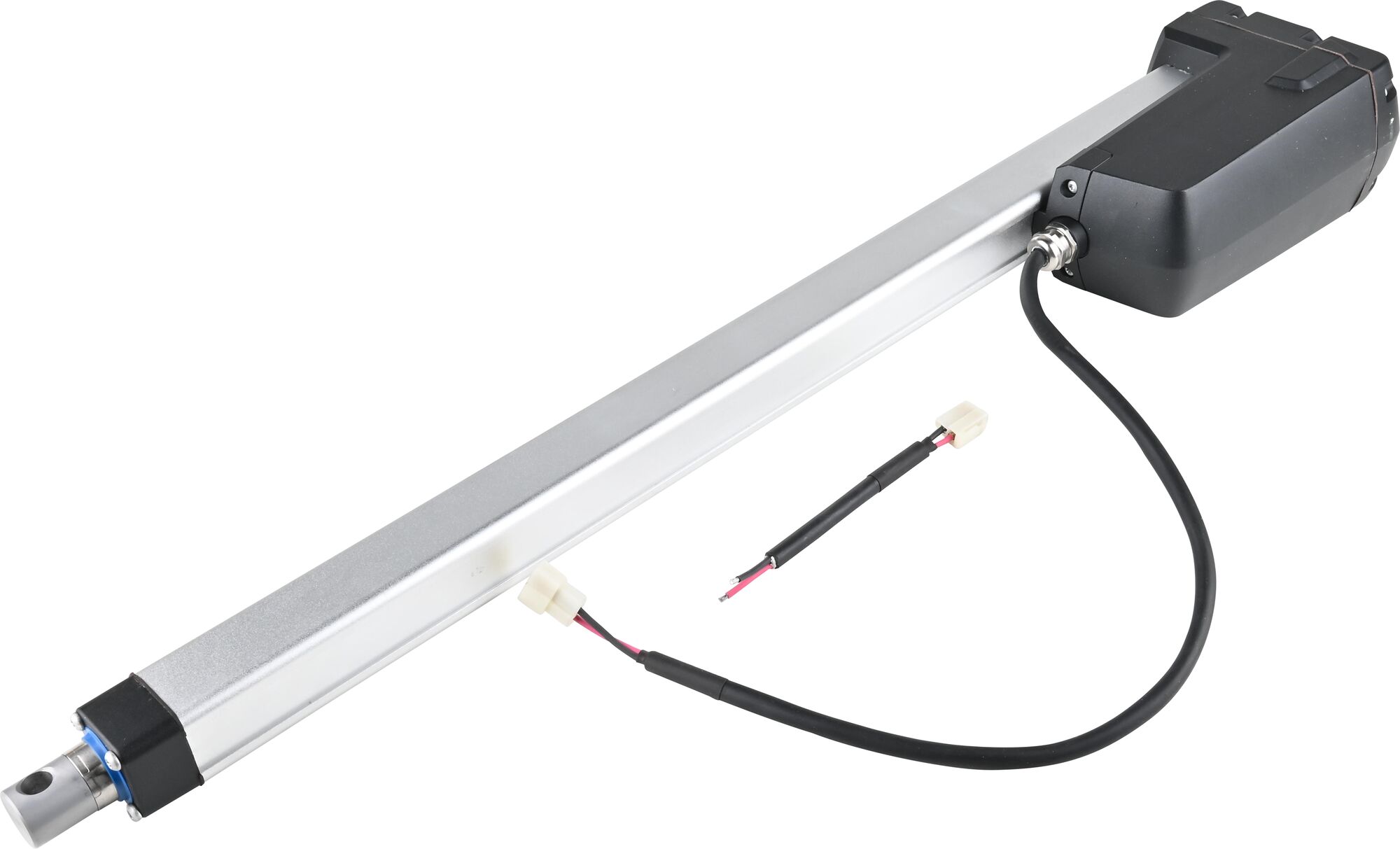

12V DC 24 in. Stroke 2,000 lb Linear Actuator
+7
12V DC 24 in. Stroke 2,000 lb Linear Actuator
Save $219.96 (40%)
Pick up at Select Store
Ship to
Available
| General Info | |
|---|---|
| Brand Name | Hydroworks |
| SKU | 8862575 |
| Package (L x W x H) | 36.5in x 8in x 6.5in |
| Weight | 20.6 lb |
| Details | |
|---|---|
| Item Name | 12V DC 24 in. Stroke 2,000 lb Linear Actuator |
| Retracted Length Pin to Pin (in.) | 33.86 |
| Life Cycle | 6,250 strokes |
| Load Capacity (lb) | 2,000 |
| Static Load Capacity (lb) | 2,600 |
| Pinhole Diameter (in.) | 1/2 |
| Speed Rating (in./sec) | No load: 0.51; max. load: 0.28 |
| Voltage Rating (V DC) | 12 |
| Max. Amperage Draw (A) | 20 |
| Recommended Fuse Size (A) | 25 |
| Duty Cycle | 15 |
| Gear Ratio | 40:1 |
| IP Rating | 65 |
| Temperature Rating | -30 to 65°C (-22 to 149°F) |
| End Stop Limit Switches | Yes |
| Packaging (qty) | 1 |
