| General Info | |
|---|---|
| Brand Name | Hydroworks |
| SKU | 8507824 |
| Package (L x W x H) | 11.2in x 3.5in x 2.2in |
| Weight | 2.2 lb |
| Details | |
|---|---|

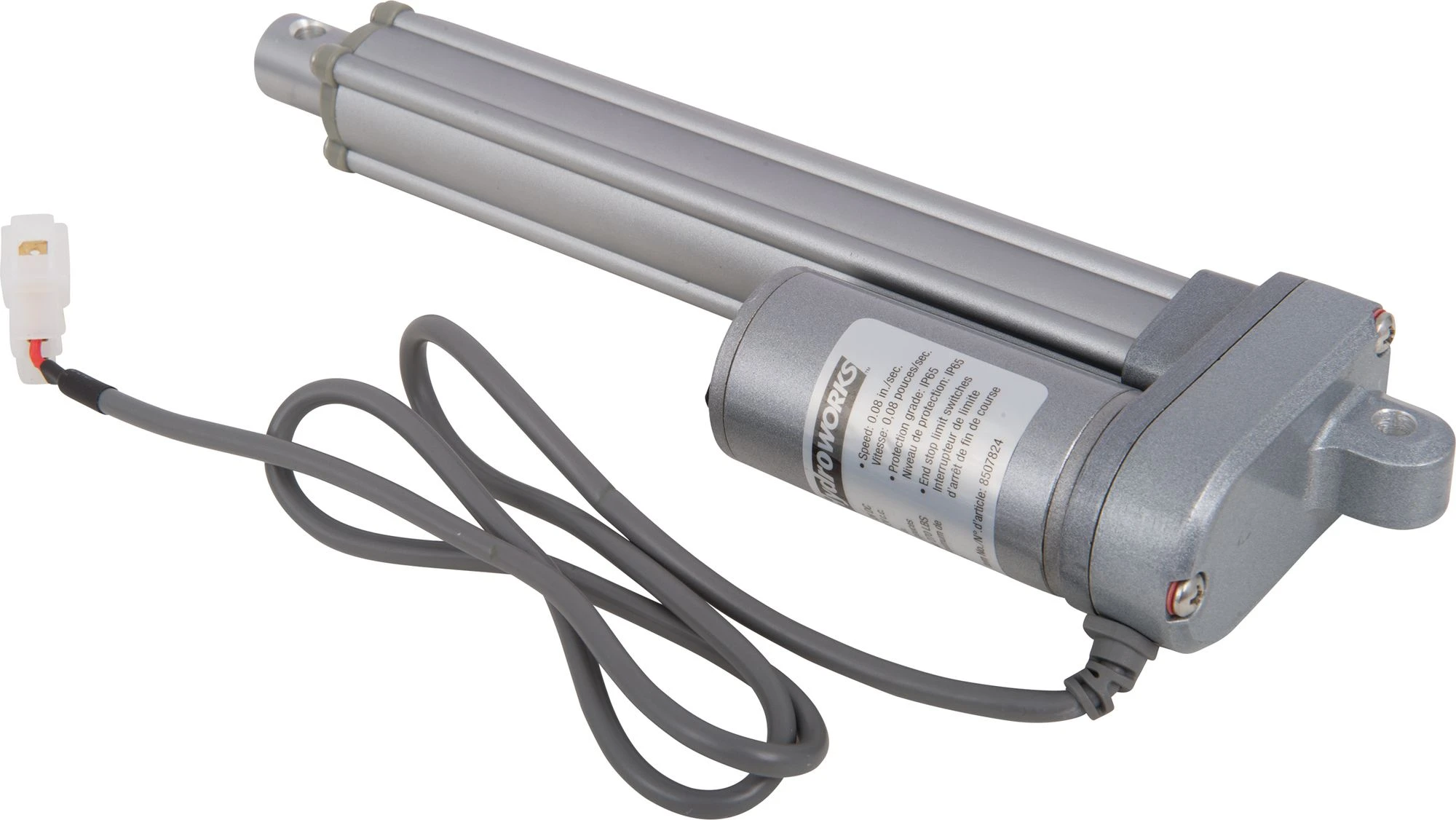

| Item Name | 12V DC 6 in. Stroke 270 lb Linear Actuator |
| Retracted Length Pin to Pin (in.) | 10.12 |
| Life Cycle | 26,666 strokes |
| Load Capacity (lb) | 270 |
| Static Load Capacity (lb) | 350 |
| Pinhole Diameter (in.) | 1/4 |
| Speed Rating (in./sec) | No load: 0.20; max. load: 0.08 |
| Voltage Rating (V DC) | 12 |
| Max. Amperage Draw (A) | 4.6 |
| Recommended Fuse Size (A) | 5 |
| Duty Cycle | 25% |
| Gear Ratio | 40:1 |
| IP Rating | 65 |
| Temperature Rating | -26 to 65°C (-14.8 to 149°F) |
| End Stop Limit Switches | Yes |
| Packaging (qty) | 1 |
