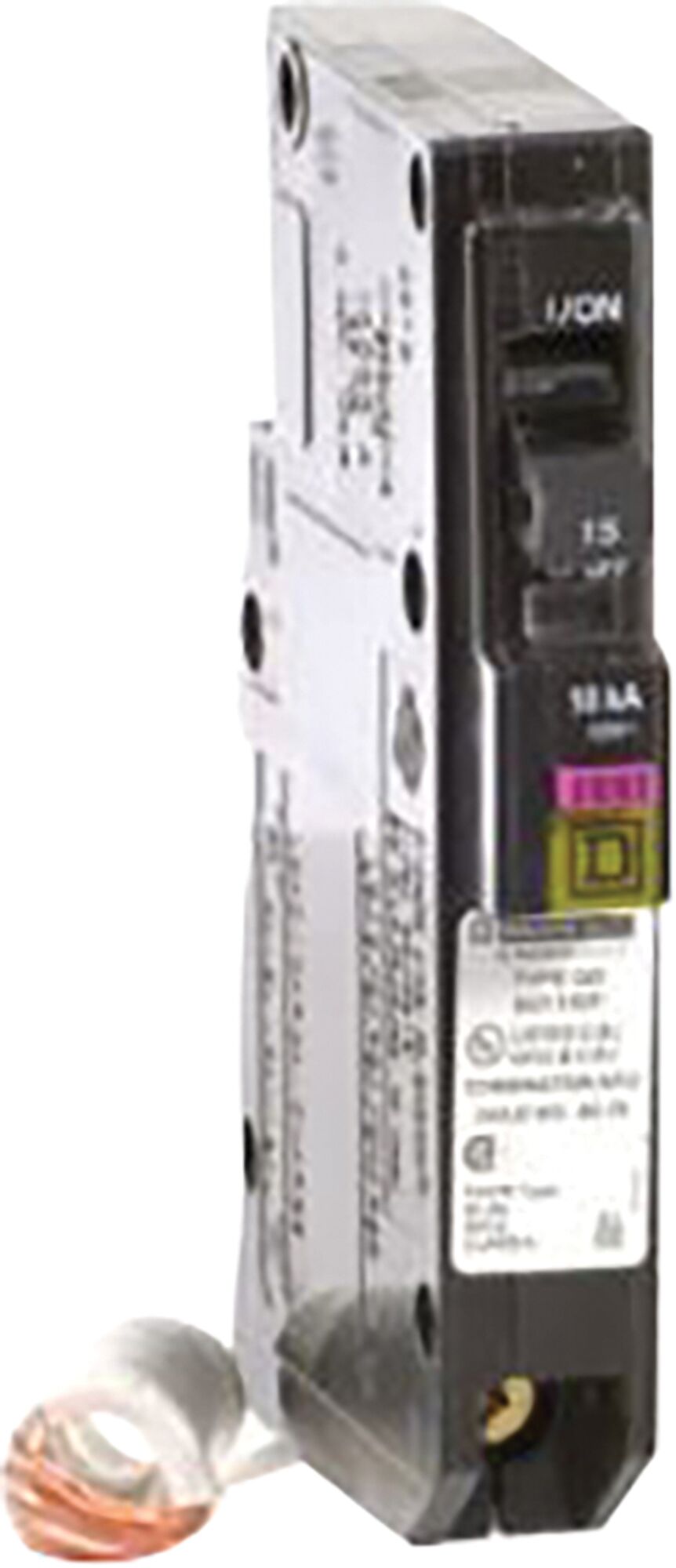

The 15A 120V single pole dual-function miniature circuit breaker is a plug-in electrical protection device designed to interrupt overcurrent conditions in residential and light commercial wiring systems. This single-pole unit provides a 15 amp current rating at 120V AC and uses a pressure plate electrical connection for wire termination.
| General Info | |
|---|---|
| Brand Name | Schneider Electric |
| SKU | 9412305 |
| Package (L x W x H) | 5.5in x 3.9in x 1.3in |
| Weight | 0.6 lb |
| Details | |
|---|---|
| Sub Brand | Square D |
| Item Name | 15A 120V Single Pole Dual-Function Mini Circuit Breaker |
| Current Rating (A) | 15 |
| Voltage Rating | 120V AC |
| Mounting Type | Plug-in |
| Number of Poles | 1 |
| Electrical Connection | Pressure plate |
| Terminal Connection | Pigtail neutral |
| Interrupt Rating (kA) | 10 |
| Wire/Cable Size | Copper/aluminum: AWG 14…AWG 8 |
| Temperature Rating (°C) | 40 |
| Overall Dimensions (in.) | 11/16W x 4-13/16H x 2-7/8D |
| Packaging (qty) | 1 |
