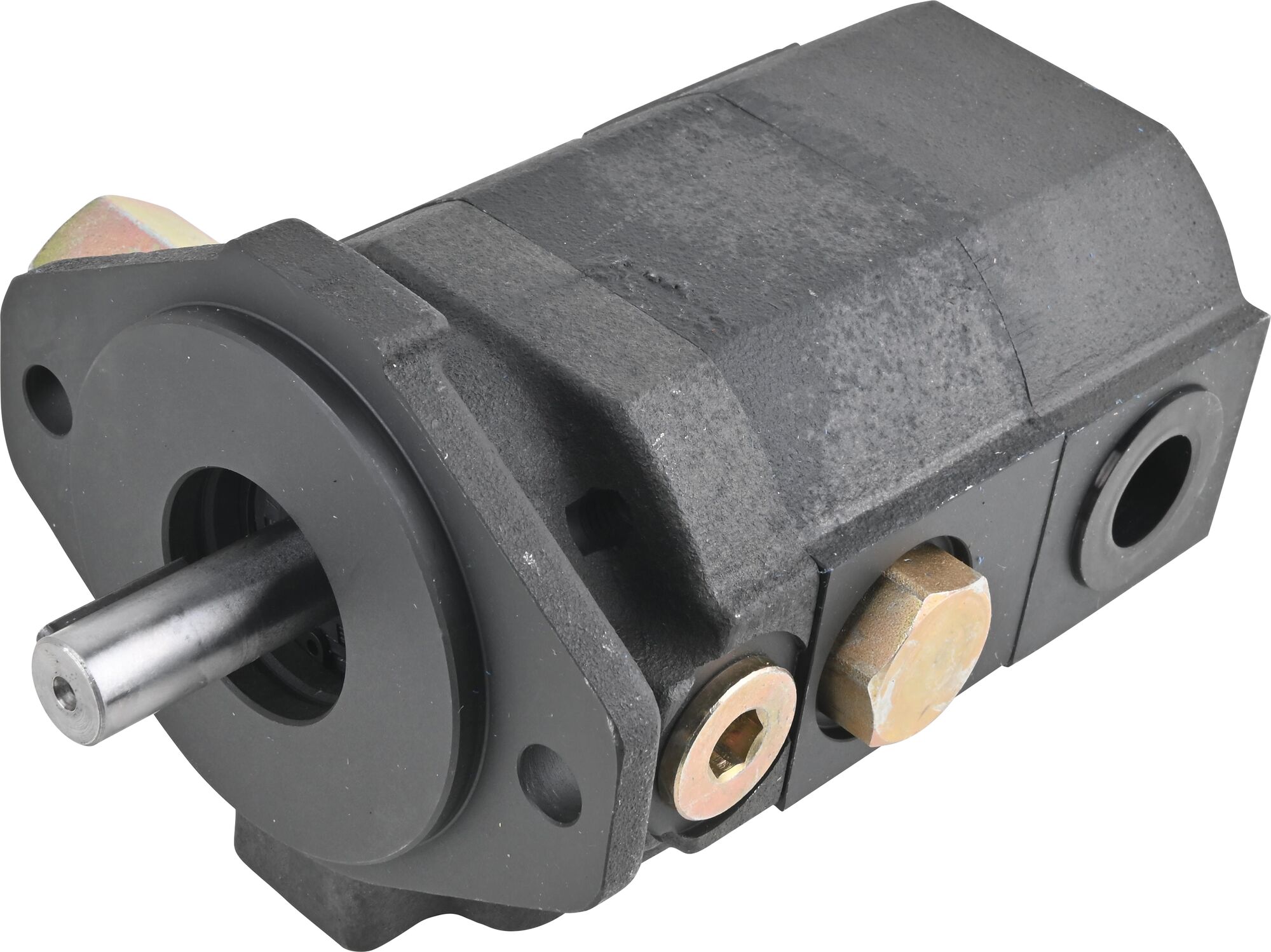

12 HP 2-Stage Cast-Iron Hydraulic Gear Pump
+6
12 HP 2-Stage Cast-Iron Hydraulic Gear Pump
Save $50.00 (13%)
Pick up at Select Store
Ship to
Available
| General Info | |
|---|---|
| Brand Name | Pro.Point |
| SKU | 9222407 |
| Package (L x W x H) | 6.4in x 5.3in x 9.5in |
| Weight | 20.5 lb |
| Details | |
|---|---|
| Displacement (cu. in.) | Low pressure: 1.395/High pressure: 0.465 |
| Connection Size | Inlet: 1 in./Outlet: 5/8 in. |
| Item Name | 12 HP 2-Stage Cast-Iron Hydraulic Gear Pump |
| Horsepower (HP) | 12 to 13 |
| Pressure Rating (PSI) | 3,000 |
| Speed Rating (RPM) | 500 to 3,600 |
| Rotation | Clockwise |
| Sideload (lb) | 20 |
| Efficiency | 90% |
| Connection Type | Inlet: NPTF/Outlet: NPTF |
| Shaft Diameter (in.) | 5/8 |
| Mounting Type | 2-bolt |
| Material | Cast-iron body, end cover and mounting flange with hardened steel gears |
| Finish | Phosphate |
| Dimensions (in.) | 8-1/8L x 6-1/8W x 4-1/2H |
| Packaging (qty) | 1 |
