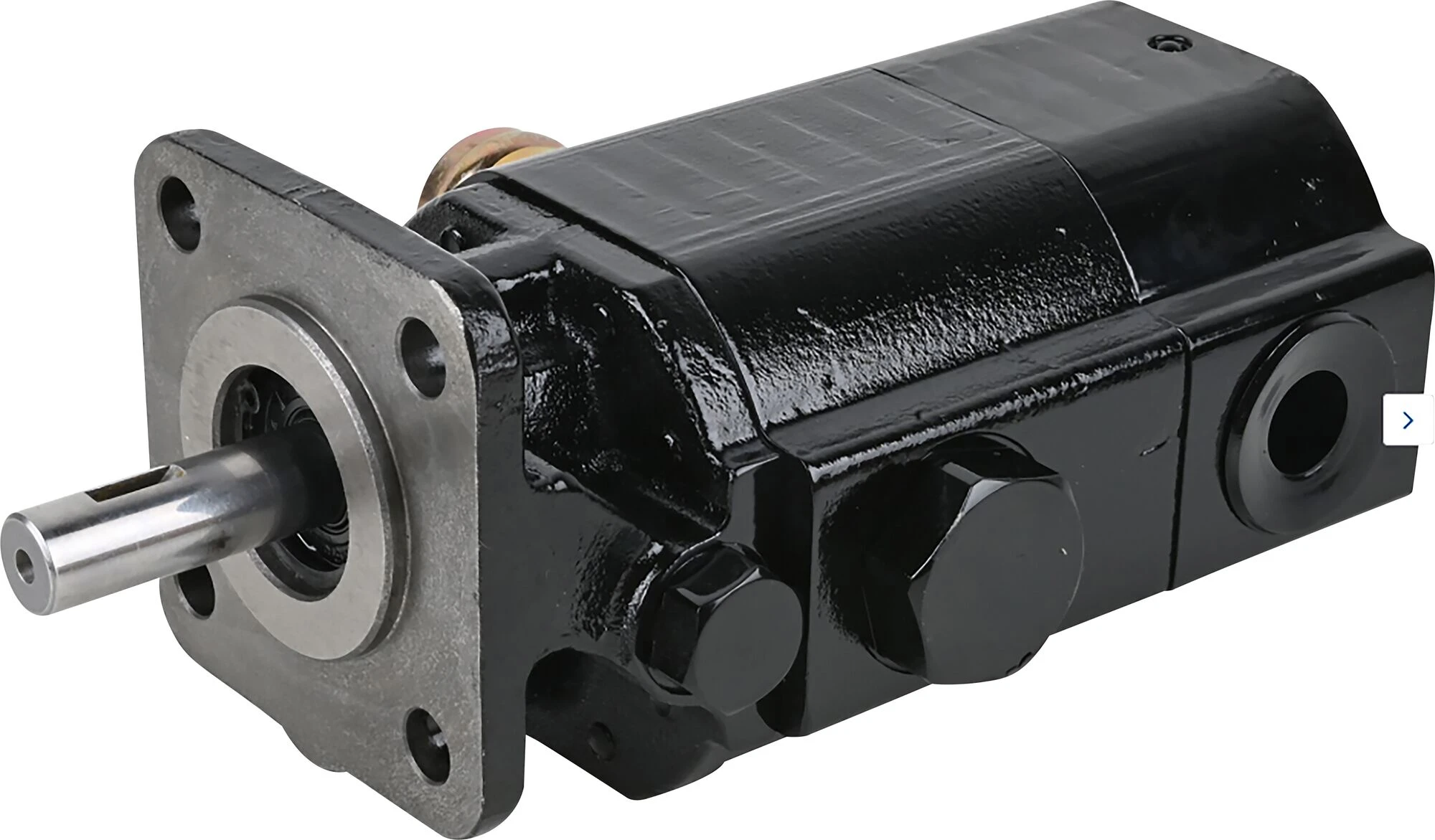

5 HP 2-Stage Cast-Iron Hydraulic Gear Pump
+7
| General Info | |
|---|---|
| Brand Name | Pro.Point |
| SKU | 9222365 |
| Package (L x W x H) | 7in x 5.5in x 3in |
| Weight | 9.6 lb |
| Details | |
|---|---|
| Item Name | 11 GPM 2-Stage Cast-Iron Hydraulic Gear Pump |
| Horsepower (HP) | 5 to 6 |
| Displacement (cu. in.) | Low pressure: 0.537/High pressure: 0.130 |
| Connection Size | Inlet: 1 in./Outlet: 1/2 in. NPT |
| Dimensions (in.) | 6-3/8L x 5-1/8W x 3-1/4H |
| Pressure Rating (PSI) | 3,000 |
| Speed Rating (RPM) | 500 to 3,600 |
| Rotation | Clockwise |
| Sideload (lb) | 20 |
| Efficiency | 90% |
| Connection Type | Inlet: tube/Outlet: NPTF |
| Shaft Diameter (in.) | 1/2 |
| Mounting Type | 4-bolt |
| Material | Cast-iron body, end cover and mounting flange with hardened steel gears |
| Finish | Phosphate |
| Packaging (qty) | 1 |
