| General Info | |
|---|---|
| Brand Name | ROLAIR |
| SKU | 8771792 |
| Package (L x W x H) | 18.5in x 17.7in x 23.5in |
| Weight | 57.9 lb |
| Details | |
|---|---|

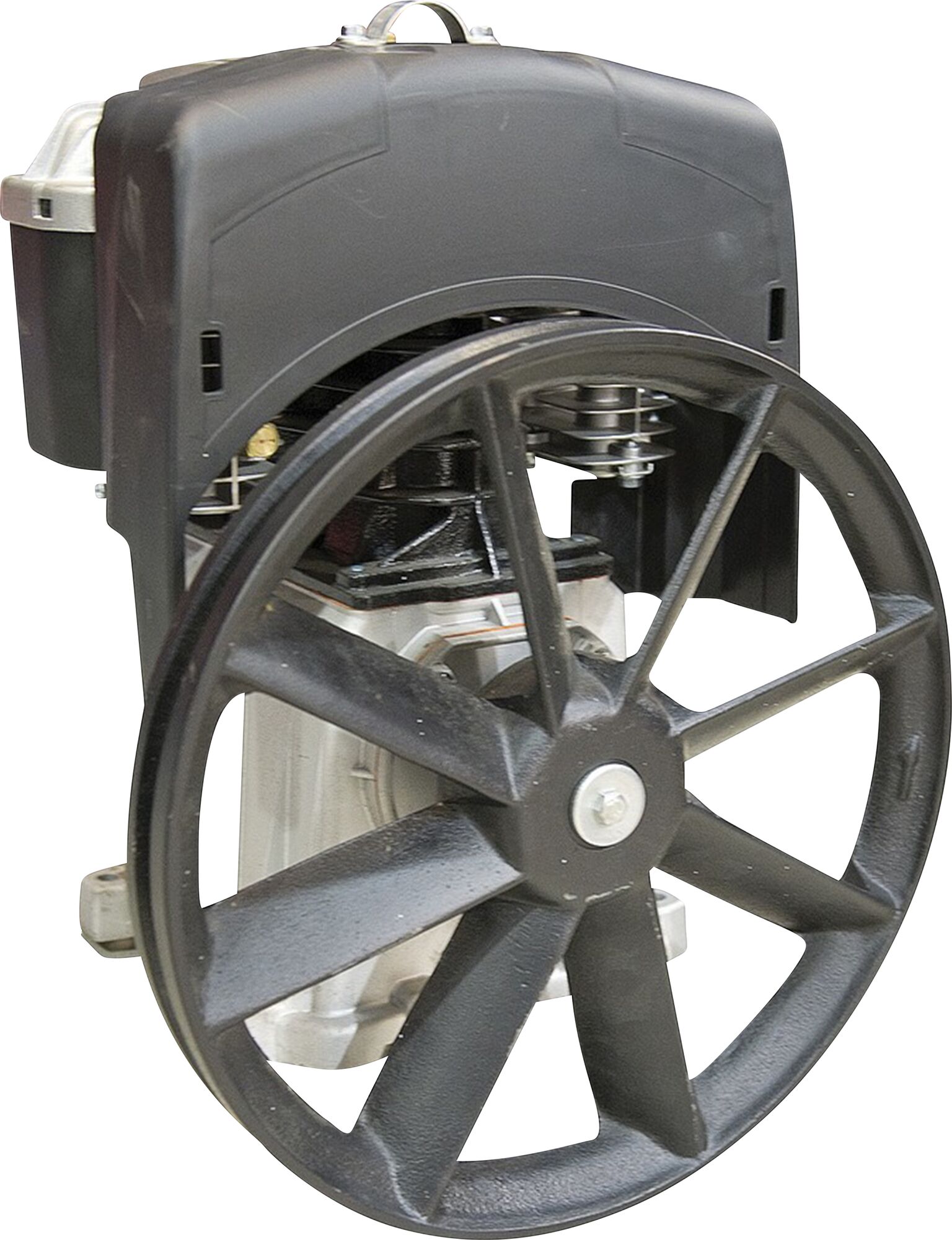

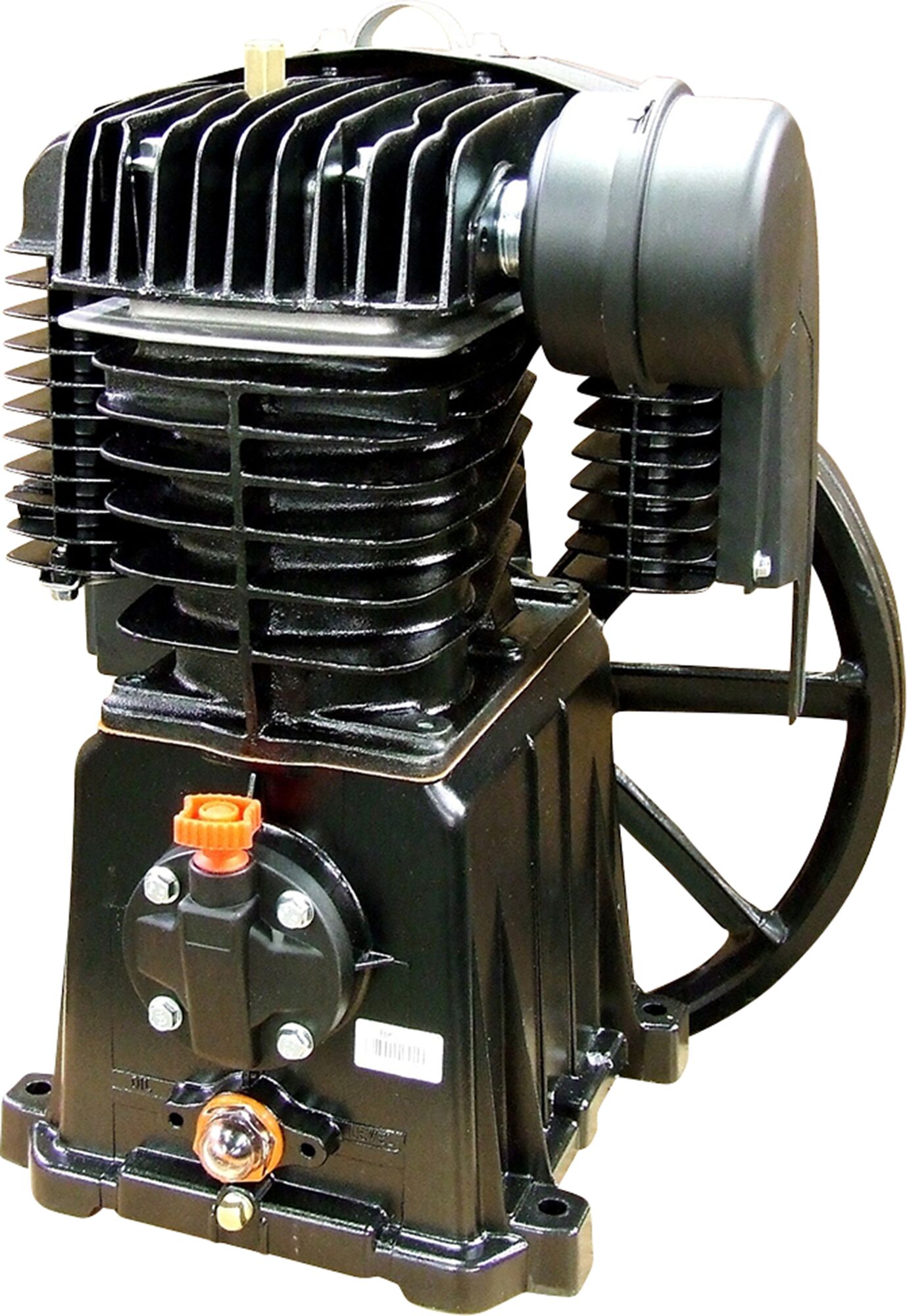

| Item Name | 2-Stage Air Compressor Pump |
| Type | Compressor pump |
| Number of Stages | 2 |
| Number of Cylinders | 2 |
| Lubrication Type | Splash lubricated |
| Horse Power (HP) | 5 to 7.5 |
| Max. Pressure Rating (PSI) | 175 |
| Air Delivery @ 40 PSI | _ |
| Air Delivery @ 90 PSI | 21.4 CFM |
| Air Delivery @ 175 PSI | 21.2 CFM |
| Oil Capacity (oz) | 45 |
| Outlet Size (in.) | 3/4 |
| Speed Range (RPM) | 900 to 1,400 |
| Rotation | Counter-clockwise |
| Groove Section | B |
| Flywheel Diameter (in.) | 14.9 |
| Bore Diameter (in.) | 4.13 |
| Stroke Length (in.) | 3.1 |
| Material | Cast iron/aluminum crankcase |
| Valve Material | Steel |
| Valve Type | Reed |
| Groove Quantity | 1 |
| Mounting Pattern (in.) | 9 x 6.6 |
| Overall Height (in.) | 18.3 |
| Overall Length (in.) | 15.8 |
| Overall Width (in.) | 14 |
| Packaging (qty) | 1 |
