| General Info | |
|---|---|
| Brand Name | Hydroworks |
| SKU | 8494171 |
| Package (L x W x H) | 10.2in x 9.2in x 10in |
| Weight | 27 lb |
| Details | |
|---|---|

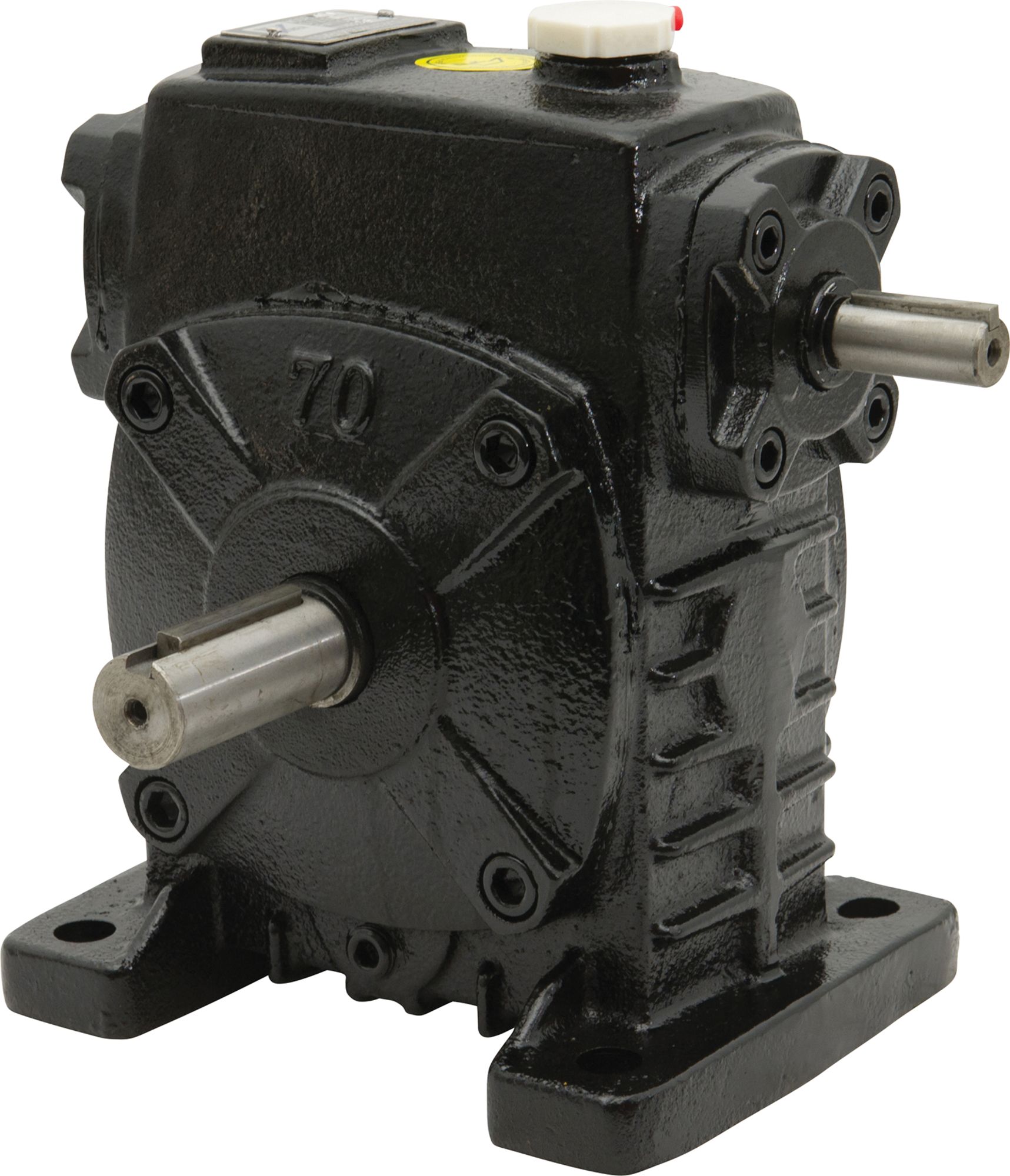

| Item Name | 60:1 Horizontal Shaft Worm Gear Speed Reducer |
| Max. Input Shaft Sideload (lb) | 30 |
| Max. Output Shaft Sideload (lb) | 958 |
| Max. Output Torque (in.-lb) | 840 |
| Max. Input Horsepower (HP) | 2 |
| Input Shaft Diameter (in.) | 5/8 |
| Input Shaft Length (in.) | 1-1/2 |
| Output Shaft Diameter (in.) | 1 |
| Output Shaft Length (in.) | 2-3/8 |
| Max. Input Shaft Speed (RPM) | 1,800 |
| Gear Type | Ring/worm |
| Gear Material | Bronze ring gear and steel worm gear |
| Housing Material | Cast iron |
| Packaging (qty) | 1 |
